Description

Reference configuration only. Final capacity, span, lifting height, duty, speeds, environment rating, controls and applicable standards are project-specific and must be confirmed in the written technical proposal.

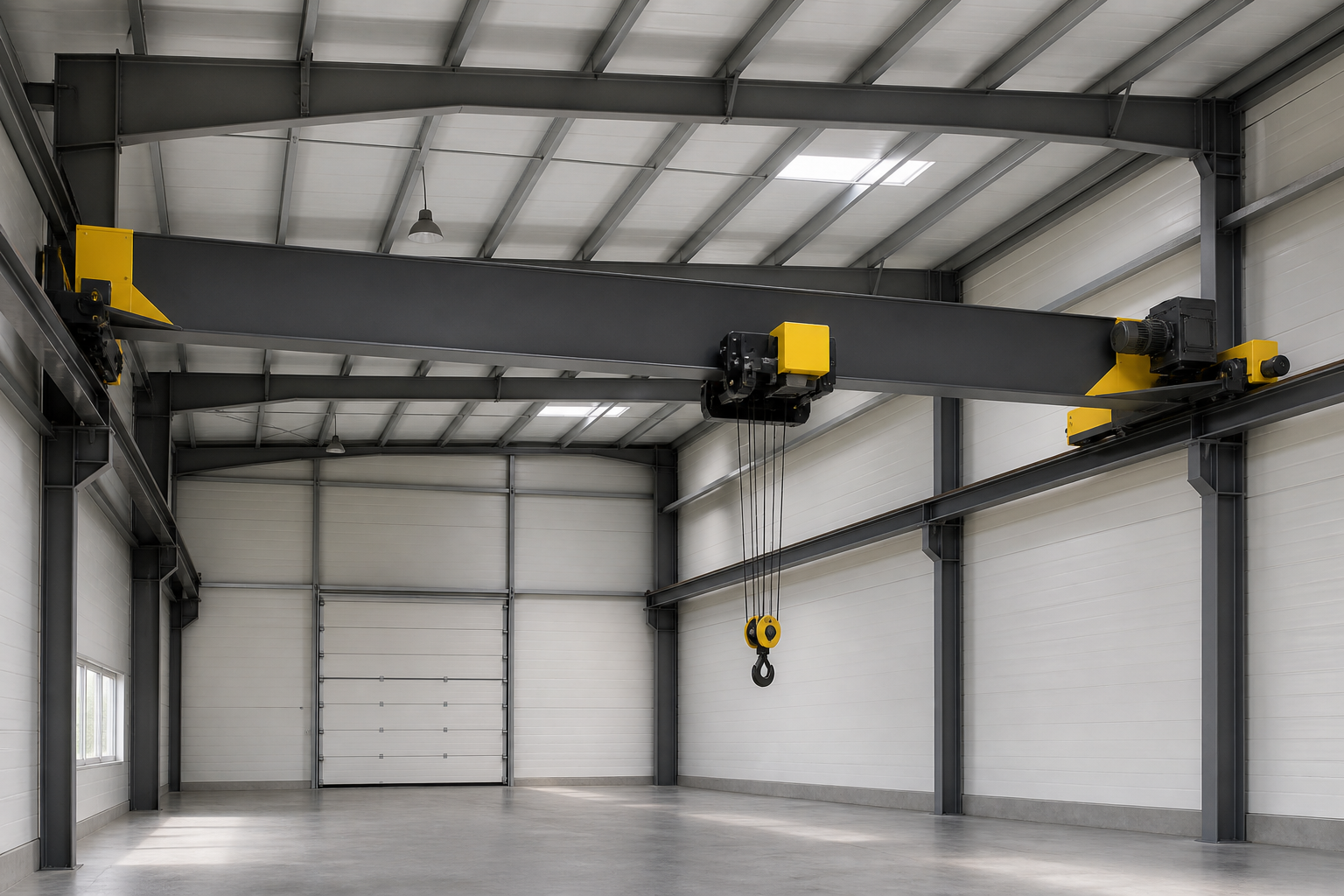

A single girder overhead crane is an efficient material-handling solution for workshops, warehouses and production areas where moderate capacity, low self-weight and optimized building clearances are important.

Typical Applications

• General manufacturing and assembly
• Warehousing and maintenance bays
• Fabrication workshops
• Equipment service areas
• Indoor production-line handling

Features

• Low dead weight and efficient use of headroom
• Top-running or under-running concept according to the building
• Wire-rope hoist or suitable lifting unit
• Pendant or radio control
• Customizable according to project requirements

Optional Configurations

• Single- or dual-speed motions
• Variable-frequency drives
• Maintenance platform and walkway where required
• Festoon, enclosed conductor or alternative power supply system
• Indoor, outdoor, low-headroom or corrosion-resistant packages

Safety Systems

• Hoisting overload protection
• Upper and lower lifting limits
• Travel end limits and buffers
• Emergency stop and warning devices
• Anti-collision and zoning functions when required

Applicable Industries

Manufacturing, fabrication, warehousing, maintenance, construction materials and general industrial facilities.

Reference Specification

Parameter	Reference / Selection Basis
Rated capacity	Typical industry reference: up to about 16 t; project-specific and to be confirmed
Span	Typical industry reference: up to about 30 m; subject to runway, building and deflection requirements
Lifting height	Project-specific / To be confirmed
Duty classification	Selected from load spectrum and operating frequency; ISO/FEM class to be confirmed
Hoisting and travel speeds	Project-specific; single-speed or variable-speed options
Control	Pendant, radio remote or operator cab where applicable
Power supply	Site-specific voltage and frequency
Environment	Indoor/outdoor, temperature, dust, corrosion and IP rating to be confirmed
Standards	Applicable destination-market standards to be agreed in the technical proposal

All values and configurations are typical reference information only and do not constitute a TitanLift performance guarantee. Final data is subject to engineering review and supplier confirmation. Customizable according to project requirements.
